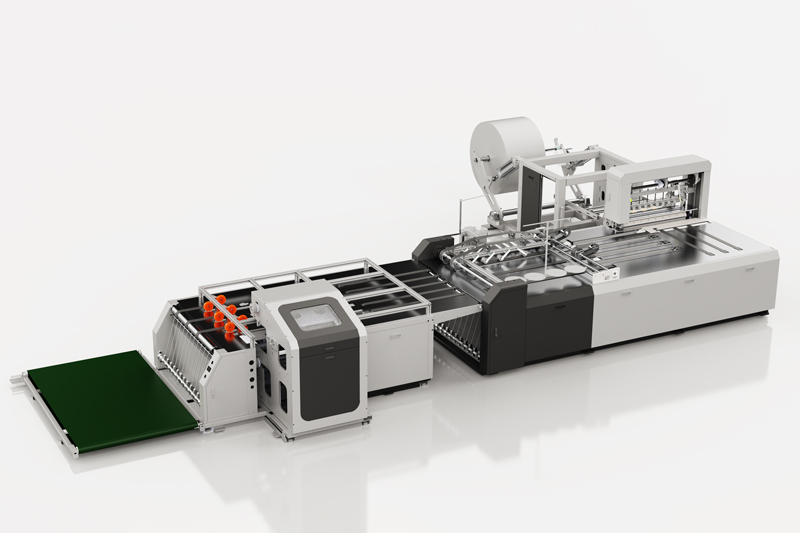

Cutting&Sewing&Bag Top Hemming For Woven Bag
Product description
Without Bag Top Hemming, the machine can process.For applications where bag top hemming is not required, the machine can operate in a standard cutting-sewing mode, offering even greater flexibility. In this mode, the production capacity increases to an impressive 22 to 40 bags per minute, making it ideal for high-volume production environments.

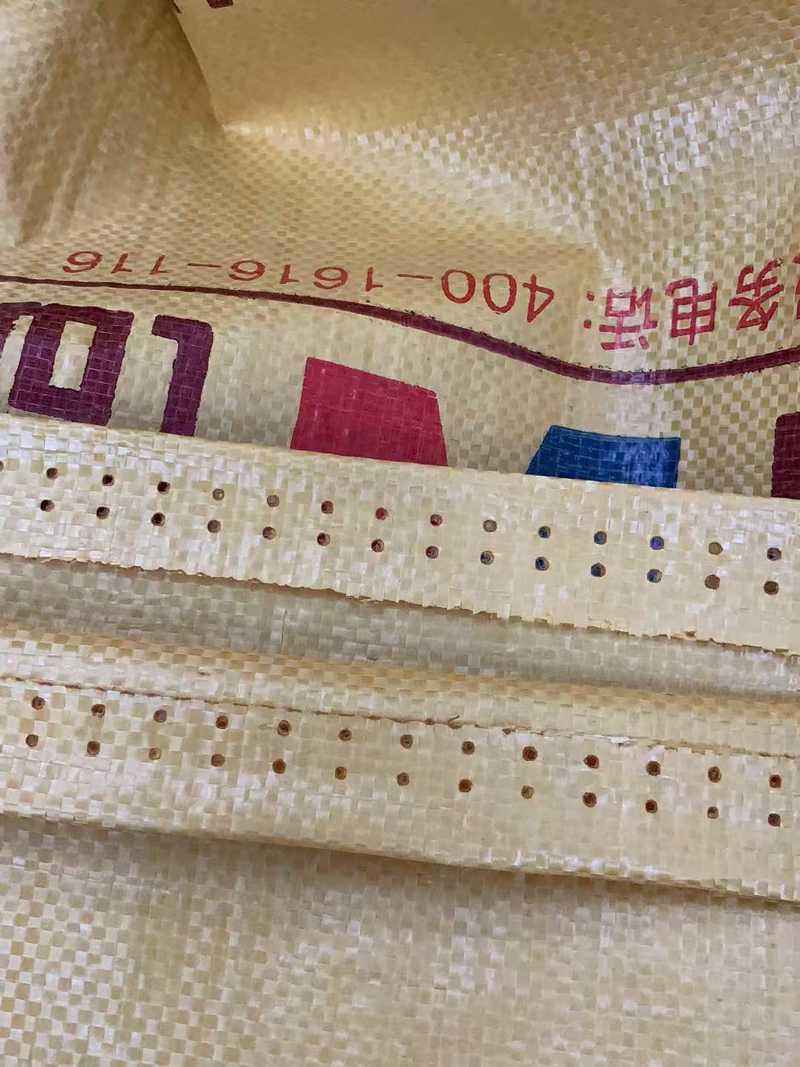

Experiencing Clean Process of Bag Top Hemming. Largely Reducing Hand-Touching on the Bag Top Area.By automating this step, the machine minimizes hand-touching on the bag top area, ensuring a cleaner finish and reducing the risk of contamination or damage. This is particularly important for industries that require high hygiene standards or where the appearance of the bag top is critical.
Vaccum Type Conveying Delivery, Ensuring Neat & Steady Bag Delivery.This innovative feature gently transports bags from one stage to the next, maintaining their shape and alignment throughout the process. The result is a neat and steady delivery of bags, ready for packaging or further processing.
Saving Manpower and Saving Cultivated Training for Skilled Manuel Operators.One of the most significant advantages of this fully automatic system is the substantial reduction in labor costs. By automating the cutting, sewing, and hemming processes, the machine eliminates the need for skilled manual operators, reducing both manpower requirements and the time and cost associated with training.
specification
|
Item |
Parameter |
|
Fabric Width(For cutting) |
350-750mm |
|
Fabric Width(For hemming) |
450-650mm |
|
Max Diameter of Fabric |
φ1200mm |
|
Cutting Length of Fabric |
600-1200mm |
|
Cutting Accuracy |
±1.5mm |
|
Stitch Range |
7-12mm |
|
Production Speed(Liner inserting) |
22-38pcs/min |
|
Production Speed(Hemming) |
20-25pcs/min |
|
Power connection |
25KW |
|
Air consumption |
≥ 0.6Mpa |
|
Machine weight |
About 6.5T |
|

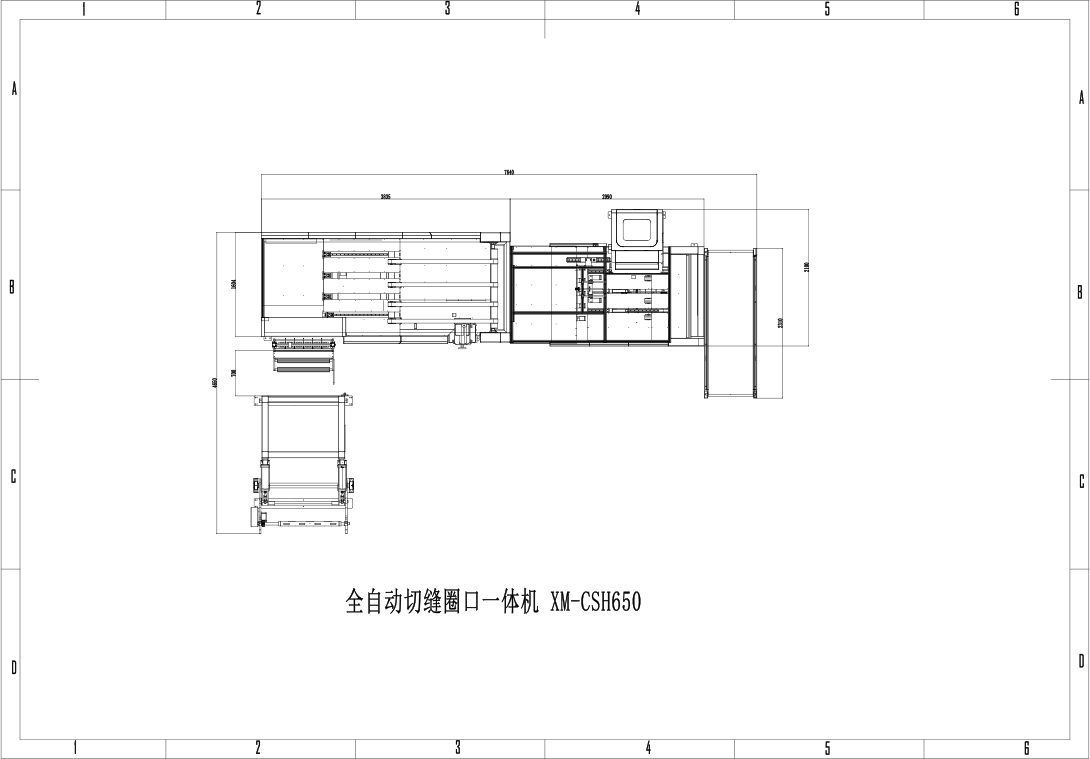

Dimension (lay-out) |
9000x5350x1700mm |
