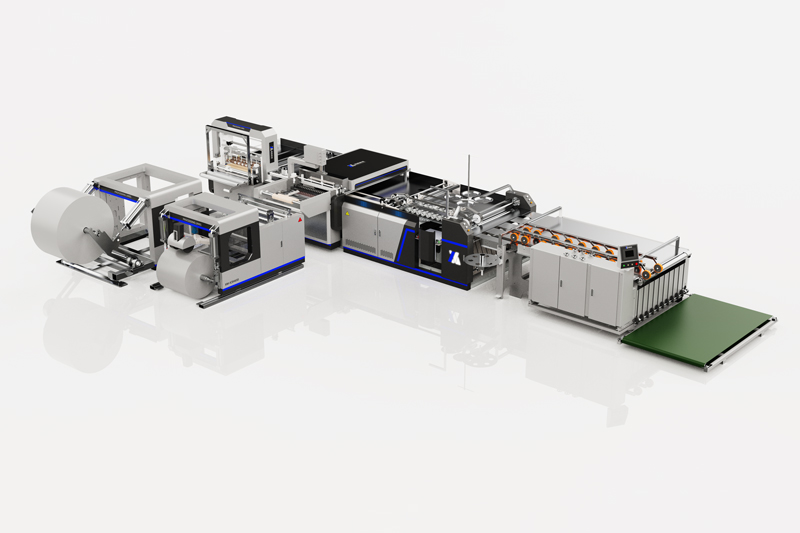

PE Liner Inserting With Hot Melt Adhesive Machine

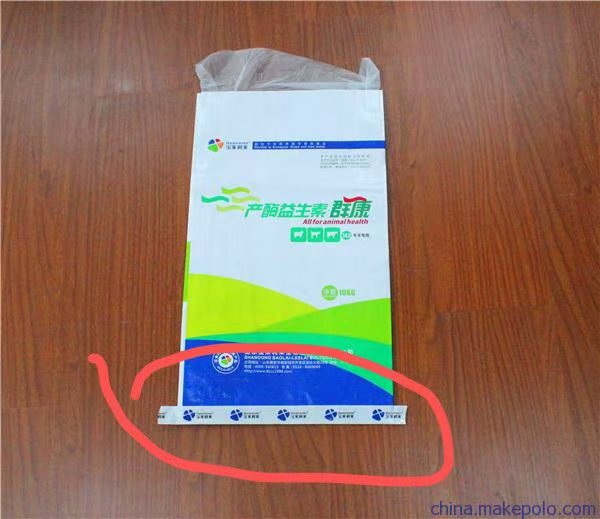

Product description
4. EPC automatic correction, high-precision automatic cutting woven bags
5. EPC automatic correction PE film, automatic sealing, film, cut;
6. Auto sewing, counting
7. Defect detection system(optional),Metal detection system(optional)
8. The whole machine PLC imported from Inovance microcomputer system control, humanized
9. large screen LED interface (10 inches) data display/record/set;
10. Can be used as cutting&sewing machine,liner inserting machine
11. Simply operation, can be ran by only one worker
12. With electricity meter, cost calculation is more accurate.The inclusion of an electricity meter in this advanced bag production machine is a highly practical feature that enables manufacturers to accurately monitor and calculate energy consumption during the production process. This functionality provides valuable insights into operational costs, helping businesses optimize energy usage, reduce expenses, and improve overall efficiency.
specification
|
Item |
Parameter |
Remark |
| Fabric Width（mm） |
350 - 750 |
350-700mm For Liner Inserting:bag width is 350-700mm |
| PE Liner（mm） |
＋20 |
|
| PE Thickness（mm） |
≥0.01 |
|
| Cutting Length（mm） |
600 - 1200 |
|
| Cutting Accuracy（mm） |
± 1.5 |
|
| Stitch Range（mm） |
7.0 -12 |
|
| Liner inserting Speed（pcs/min) |
20 - 38 |
|
| Voltage（V ) |
three-phase380/220 3Phase380/220 |
50HZ/60HZ |
| Total Power（KW) |
22 |
|
| Air Pressure（MPA) |
≥ 0.8 |
|

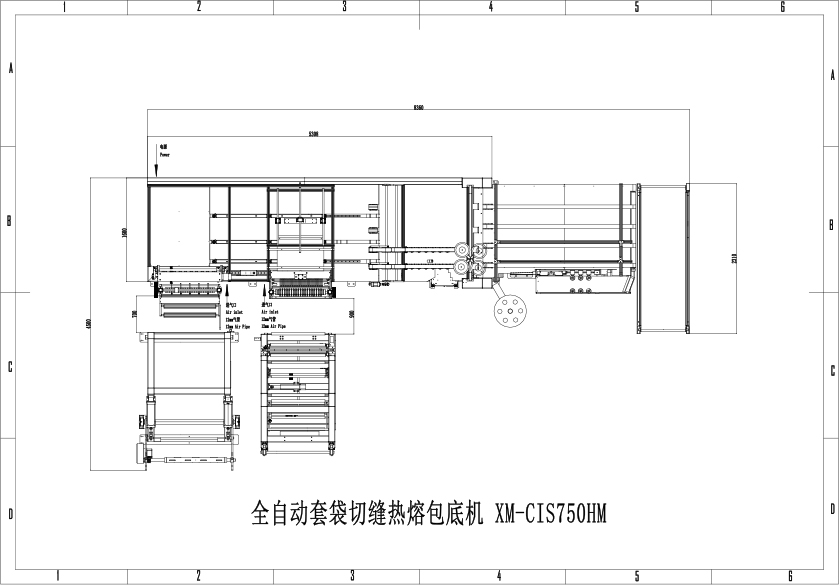

| Dimension Of Main Machine （mm） |
5300*1900*1500 |
|
| Dimension Of Fabric Unwinder（mm） |
1960*1400*1200 |
|
| Dimension Of PE Unwinder（mm） |
1340*1120*1400 |
|
| Dimension Of Hemming Machine（mm） |
3950*2145*1200 |
|
| Dimension Of Collecting（mm） |
1500*1250*200 |
|
| Total Weight（T） | about6.5 |
