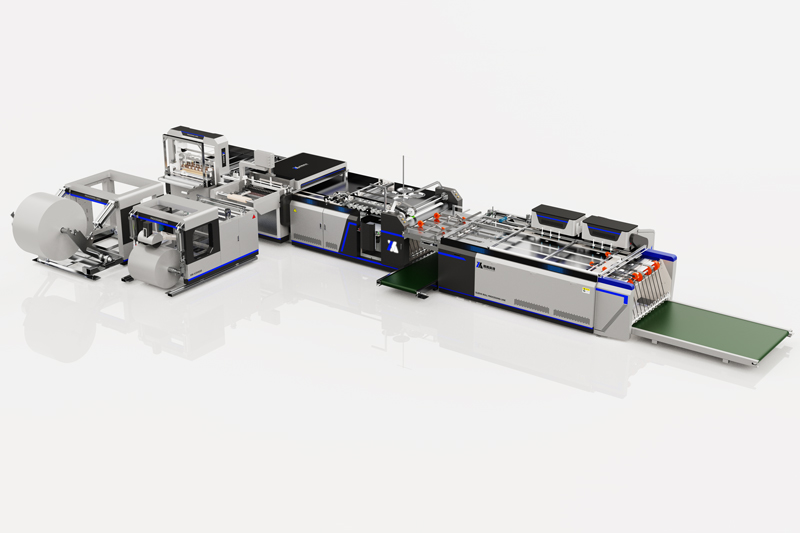

PP Woven Bag Liner Inserting – Bag Top Hemming Conversion Line
Product Features
1. With Liner Inserting-Cutting-Sewing and Bag Top Hemming Process
2. With Cutting-Sewing and Bag Top Hemming Process Only (Without Liner Inserting)
3. With Liner Inserting-Cutting-Sewing Only (Without Bag Top Hemming Process)
4. Cutting-Sewing Process Only (Without Liner Inserting & Without Bag Top Hemming)
Product advantages
1. Saving Manpower, Space and Saving Cultivated Training for Skilled Manuel Operators to the Maximum.
2. Producing Finished Bags with Conformed & Unified Quality with Stable Performance.

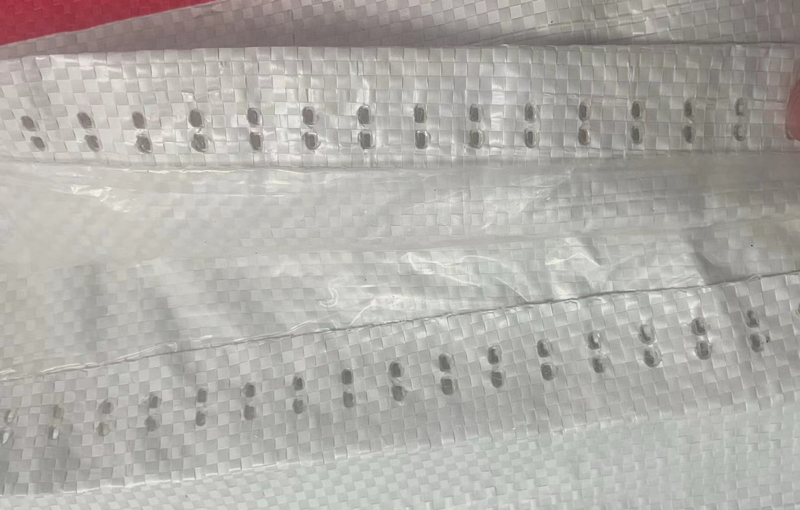

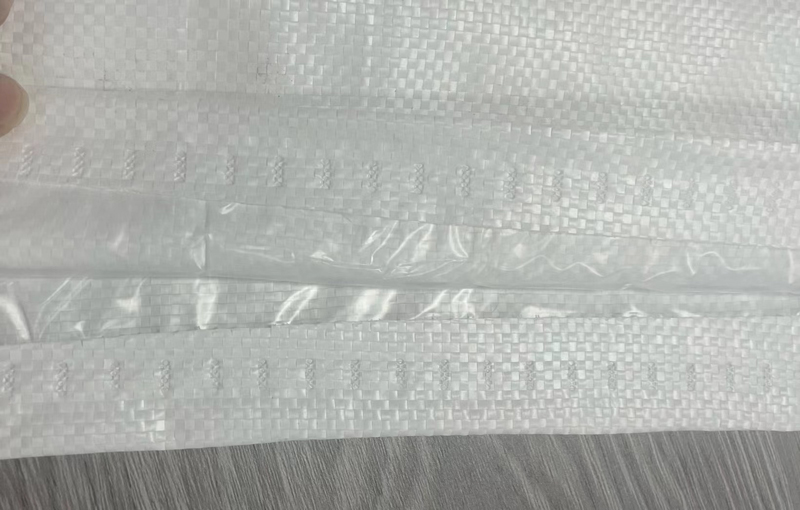

3. Experiencing Clean Process of Bag Top Hemming. Largely Reducing Hand-Touching on the Bag Top Area.
4. Highly Synchronized Machine for Easy Setup and Quick Bag Size Changeover.
5. A Total-Solution Machine for PP Woven Bags with Final Products Applicable in a Big Variety Market.
Product Application
1. Agriculture: Ideal for processing PP woven bags for packaging grains, seeds, and fertilizers.
2. Construction: Suitable for cement, sand, and other bulk material packaging.
3. Food Industry: Used for producing bags to pack products like rice, flour, and sugar.
4. Retail: Perfect for creating sturdy shopping and promotional bags.
5. Logistics: Enables production of heavy-duty bags for shipping and storage.
6. Industrial Use: Applicable for packaging chemicals, minerals, and other industrial products.
specification
|
Item |
Parameter |
Remarks |
|
Fabric Width(For liner inserting) |
350-750mm |
|
|
Fabric Width(For hemming) |
450-650mm |
Customized according to bag width |
|
Max Diameter of Fabric |
φ1200mm |
|
|
PE Film Width |
+20mm(PE Film Width Bigger) |
|
|
PE Film Thickness |
≥0.01mm |
|
|
Cutting Length of Fabric |
600-1200mm |
|
|
Cutting Accuracy |
±1.5mm |
|
|
Stitch Range |
7-12mm |
|
|
Production Speed(Liner inserting) |
22-38pcs/min |
|
|
Production Speed(Hemming) |
10-22pcs/min |
|
|
Power connection |
32KW |
|
|
Air consumption |
≥ 0.6Mpa |
|
|
Machine weight |
About 6.5T |
|
|

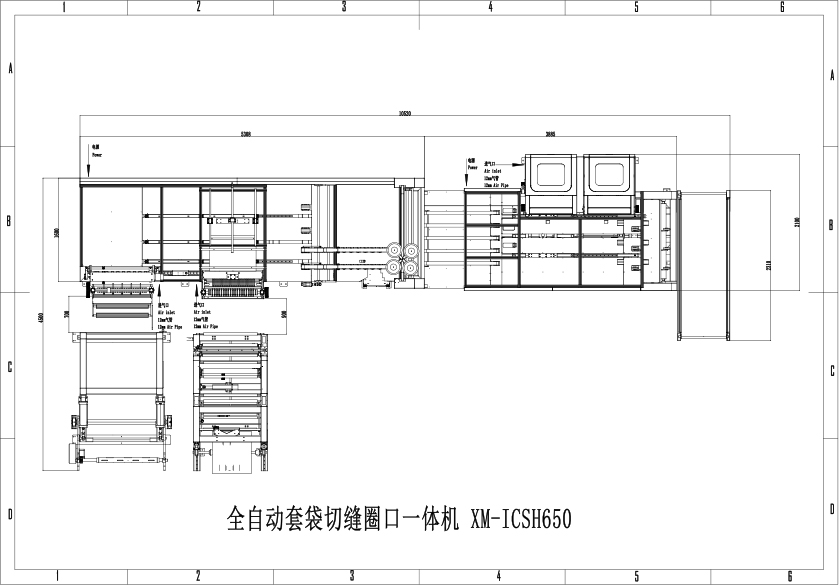

Dimension (lay-out) |
11300x5350x1700mm |
