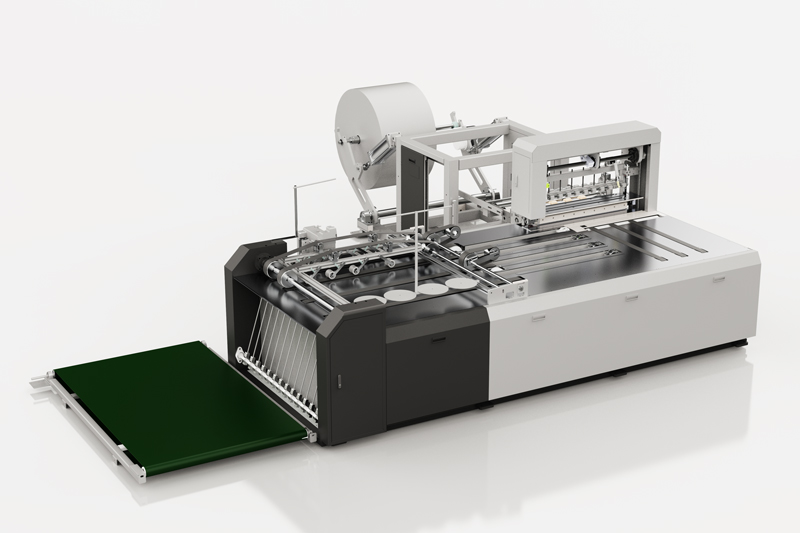

Woven Bag Cutting-Sewing Machine
Product description
2.One key to change hot and cold cutter.The machine features an innovative one-key switching mechanism that allows operators to easily change between hot and cold cutters based on production requirements. Compared to traditional sliding cutters, this system ensures a straighter and cleaner cutting line, reducing material waste and improving the overall appearance of the finished bags.
3.EPC automatic correction, high-precision automatic cutting woven bags.This level of accuracy is critical for maintaining consistency in bag dimensions and improving the efficiency of downstream processes, such as sewing and hemming.
4.Auto sewing, counting for Enhanced Efficiency.
5.Defect detection system(optional),Metal detection system(optional).Ensures consistent quality by detecting and eliminating defective products.Minimizes material waste by identifying defects early in the production process.Prevents metal contaminants from reaching consumers, ensuring product safety,especially food grade.
6. The whole machine PLC imported from Japan Mitsubishi/Inovance microcomputer system control, humanized large screen LED interface (10 inches) data display/record/set;The intuitive interface reduces the learning curve and minimizes the risk of operational errors.
7. Simply operation, can be ran by only one worker.
8. With electricity meter, cost calculation is more accurate.
specification
|
Item |
Parameter |
Remark |
| Fabric Width（mm） |
350 - 750 |
|
| PE Thickness（mm） |
≥0.01 |
|
| Cutting Length（mm） |
600 - 1200 |
|
| Cutting Accuracy（mm） |
± 1.5 |
|
| Stitch Range（mm） |
7.0 -12 |
|
| Speed（pcs/min) |
20 - 42 |
|
| Voltage（V ) |
three-phase380/220 3Phase380/220 |
50HZ/60HZ |
| Total Power（KW) |
8.5 |
|
| Air Pressure（MPA) |
≥ 0.8 |
|

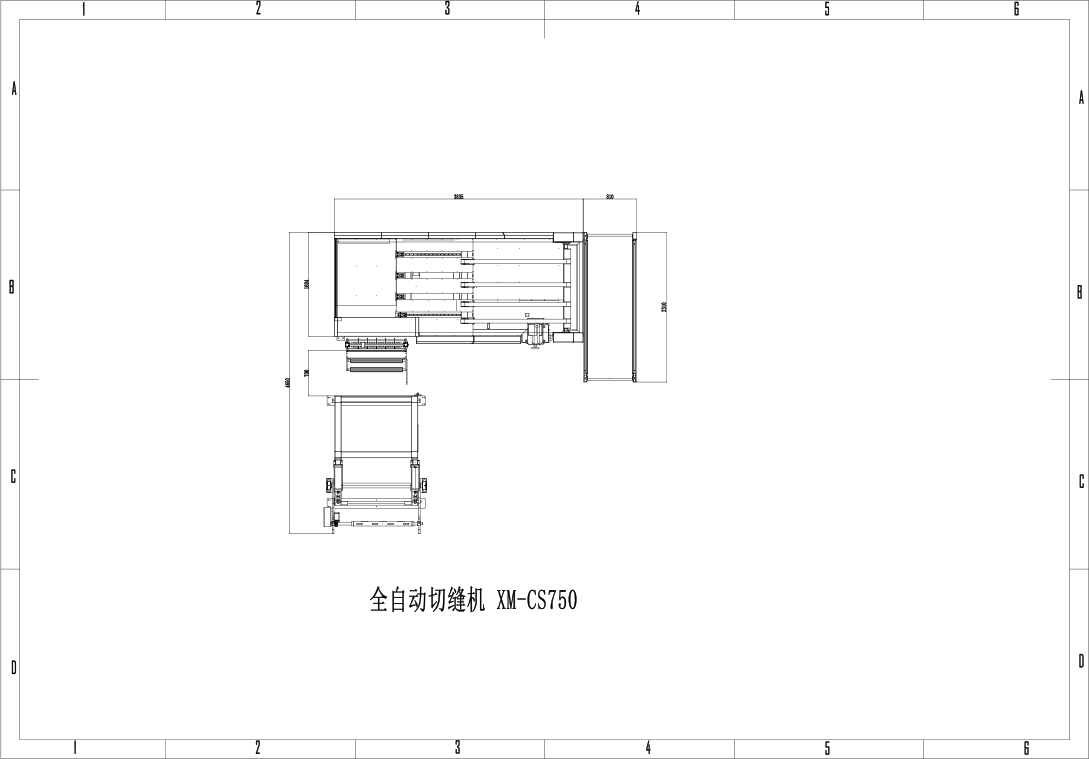

| Dimension Of Main Machine （mm） |
3835*1900*1540 |
|
| Dimension Of Fabric Unwinder（mm） |
1960*1400*1200 |
|
| Dimension Of Collecting（mm） |
2000*1300*200 |
|
| Total Weight（T） | about2 |
